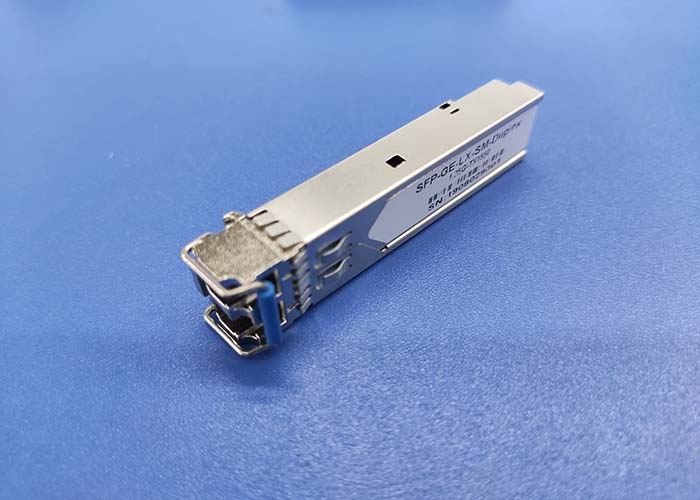

TX1310nm 40KM SFP Optical Module 1000BASE Duplex LC Connector Single-mode
PRODUCT DESCRIPTION
An optical module, also called fiber optic transceiver or optical transceiver, is a typically hot-pluggable device used in high-bandwidth data communications applications. Transceiver modules typically have an electrical interface on the side that connects to the inside of the system and an optical interface on the other side that connects to the various devices through a fiber optic cable. An optical module functions as a photoelectric converter which converts the electrical signal into light and vice versa.
1.25Gb/S SFP Duplex Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 40KM in 9/125um single mode fiber.
This module is designed to be compliant with SFF-8472 SFP Multi-source Agreement (MSA)
The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
PRODUCT FEATURES
Compliant with MSA SFP Specification
Digital Diagnostic Monitor Function Compatible with SFF-8472
Distance up to 40KM
Up to 1.25Gbps data rate
Single +3.3V power supply
Duplex LC receptacle optical interface compliant
Hot pluggable
Receiver Loss of Signal out
Serial ID module on MOD(0~2)
International Class 1laser safety certified
Transmitter disable input
2 years warranty
Specification of Transmitter
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Average Output Power | POUT | -2 | | 2 | dBm | Note (1) |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Center Wavelength | λC | 1260 | 1310 | 1360 | nm | FP Laser |
| | | | | | |
| Spectrum Bandwidth(-20dB) | σ | | | 4 | nm | |
| Differential Line Input Impedance | RIN | 90 | 100 | 110 | Ohm | |
| Output Eye Mask | Compliant with G.959(class 1 laser safety) | | Note (2) |
Note (1): Measure at 2^23-1 NRZ PRBS pattern
Note (2): Transmitter eye mask definition
Specification of Receiver
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| | | | | | | |
| Receiver Sensitivity | PIN | | | -26 | dBm | Note (1) |
| Los Of Signal Assert | PA | | | -35 | dBm | |
| Los Of Signal De-assert | PD | -28 | | | dBm | Note (2) |
| LOS Hysteresis | PA-PD | 0.5 | 2 | 6 | dB | |
| Receiver Overload | Pmax -PIN | | | -3 | dBm | |
Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ
Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
